1.54INCH-E-PAPER-C

2768,00 ₽

1.54INCH-E-PAPER-C

Артикул: 3b259591e054 Категории: ,

      Описание

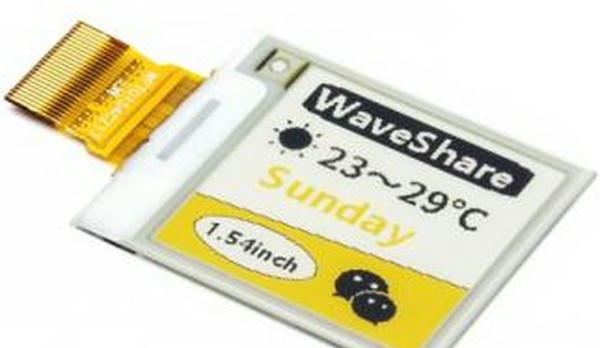

      152×152, 1.54inch E-Ink raw display, yellow/black/white three-color, SPI interface, without PCB

      Features:

      No backlight, keeps displaying last content for a long time even when power down

      Ultra low power consumption, basically power is only required for refreshing

      Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/STM32)

      Specifications:

      Operating voltage: 3.3V

      Interface: 3-wire SPI, 4-wire SPI

      Outline dimension: 37.32mm x 31.8mm x 0.98mm

      Display size: 27.51mm x 27.51mm

      Dot pitch: 0.181 x 0.181

      Resolution: 152 x 152

      Display color: yellow, black, white

      Grey level: 2

      Full refresh time: 27s

      Refresh power: 26.4mW(typ.)

      Standby power: <0.017mW Viewing angle: >170°

      Диагональ видимой части 1.54 «, Тип дисплея e-paper, Режим графический, Разрешение 200×200, Цвет отображения информации чёрный, желтый, Особенности SPI
